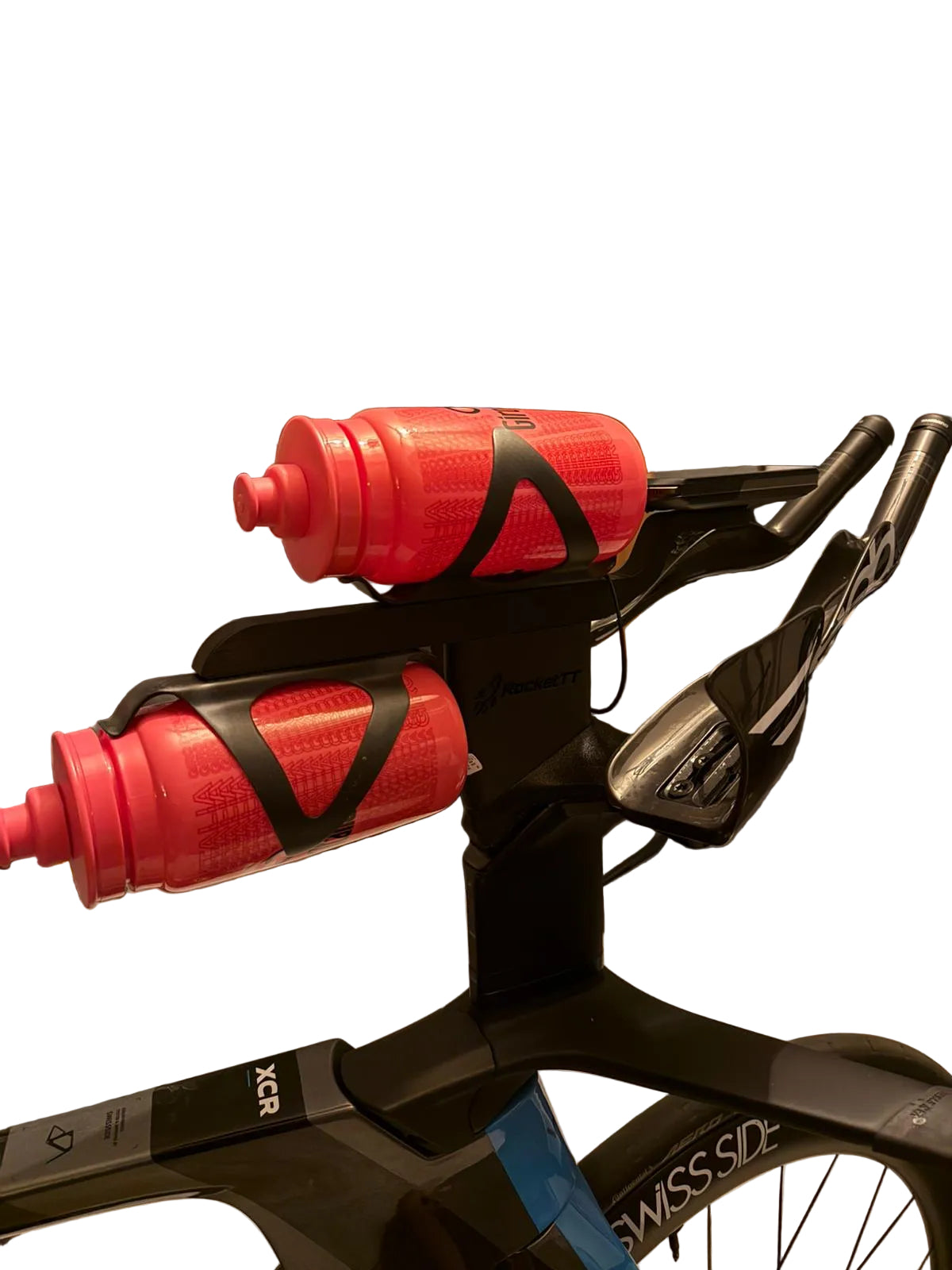

ASSEMBLY GUIDE Van Rysel PRO — ROCKETTT MODULAR BTA SYSTEM

GUIDE DE MONTAGE Van Rysel PRO— SYSTÈME BTA MODULAIRE ROCKETTT

Welcome to the performance ecosystem. Follow these steps to install your BTA mount and optimize your aero cockpit.

🛠️ REQUIRED HARDWARE

  • Screws included:
    • 2x M5 x 20mm screws (Base)
    • 2x M5 x 40mm screws (Upper stack)
    • 2x M5 x 8mm screws (Lower option)
  • Tools: Allen key set (2.5, 3, 4mm recommended).

⚙️ STEP 1: CENTRAL BLOCK ASSEMBLY

Objective: Secure the BTA support plate to the central spacer.

  1. Align the holes of the BTA support plate with the threads of the central spacer.
  2. Securely fasten the assembly using the 2 M5 x 20mm screws, tighten to 4nm
    • 💡 RocketTT Tip: A medium threadlocker (Loctite 243 type) on the screws is recommended for optimal vibration resistance.

💨 STEP 2: UPPER AERO STACK (VFLOW/BTA)

Objective: Integrate the fairing, the computer mount / or a 1cm spacer and the main bottle cage.

  1. Stack the components on the central spacer in the following order:
    • 👉 VFLOW Aero Mount (nose cone)
    • 👉 Computer Mount (Garmin/Wahoo spacer) / spacer
    • 👉 Main bottle cage.
  2. Thread the entire stack using the 2 long M5 x 40mm screws. / !\ If you are not using the spacer / Garmin mount, use the M5 x 30mm screws / !\
  3. Screw firmly from the top into the upper threads of the central spacer: Tighten to 4nm

🎒 STEP 3: INSTALLING THE LOWER OPTION

Objective: Attach an accessory or a second bottle cage under the spacer.

  1. Position your lower bottle cage (or modular accessory type Spares) directly under the central spacer.
  2. Securely fasten using the 2 short M5 x 8mm screws. Tighten to 4nm



🏁 STEP 4: FINAL INSTALLATION ON THE COCKPIT

Objective: Mount the assembled unit onto the bike.

  1. Position the complete BTA assembly between your cockpit plate and your armrests.
  2. Securely fasten using the provided M5 screws.
    • Note: An M5 screw kit of various lengths is provided to accommodate the thickness of your specific stack
    • Select the longest possible screw while ensuring a firm tightening without parasitic abutment.

Congratulations, your RocketTT cockpit is ready! Check the tightness of all components before your first ride.
